1.5v LED Flasher and LED on 1.5v Supply

This will flash a LED, employing a single 1.5v cell. it's going to even flash a white LED even supposing this kind of LED needs regarding three.2v to 3.6v for operation. The circuit takes regarding 2mA however produces a really bright flash.


LED on 1.5v SUPPLY

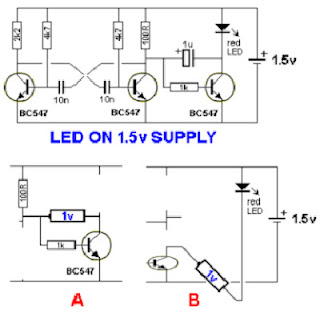

A red LED needs regarding one.7v before it'll begin to illuminate - below this voltage - NOTHING! This circuit takes regarding 12mA to illuminate a red LED employing a single cell, however the fascinating feature is that the approach the LED is illuminated. The 1u electrolytic may be thought of to be a 1v cell. (If you wish to be technical: it charges to regarding one.5v -0.2v loss as a result of collector-emitter = one.3v and a lost of
about 0.2v via collector-emitter in diagram B.)



It is firstly charged by the 100R resistor and therefore the third transistor (when it's totally turned ON via the 1k base resistor). this is often shown in diagram "A." throughout this time the second transistor isn't turned on and that is why we've omitted it from the diagram. When the second transistor is turned ON, the 1v cell is pulled to the 0v rail and therefore the negative of the cell is truly 1v below the 0v rail as shown in diagram "B."
The LED sees one.5v from the battery and regarding 1v from the electrolytic and this is often sufficient to illuminate it. Follow a pair of} voltages to visualize how they boost 2.5v.
