Telephone for VoIP gate Circuit Diagram

A project of Telephone for VoIP gate Circuit Diagram. Calls over the Internet can be in several different ways. For households with a permanent connection to the Internet, it is advantageous to use different IP phones and VoIP gateways that need to function on the computer. Because IP phones are still relatively expensive, they are used more often different VoIP gateway. VoIP gateway is "one end" connected to a network with access to the internet, the "other end" connects a standard analog phone, which is then used in the normal way and that has given a telephone number available from any fixed or mobile phone. Some VoIP gateway router in addition to that we need as well, if we want to access via a modem to connect multiple computers. To my VoIP gateway, we can connect nehomologovaný, self made ​​phone. Instructions for simple phone is the subject of this article.

How to the phone works

Normally the phone line is a DC voltage, usually 50 to 70 V. During the ringtone to this voltage superposed yet AC 50-100 V with a frequency of usually 20 or 25 Hz. "Pick up the 'phone line will pass through the current 20-40 mA. On the phone while the voltage drop occurs several volts (Fig. 1). This voltage can be used to power the circuitry phone. The polarity of the DC voltage is not defined, the phone must function in both polarities. The phone line is when answering the call of a defined impedance, which should be adapted telephone. Line impedance in different countries vary so as the phone purchased in Germany (impedance 220 ​​ohms + 820 ohms in parallel with 220 nF) not in Bohemia (600 ohms) to work optimally. Sometimes differ impedance different networks within the same country, depending on the age and type of telephone exchanges, length and characteristics of the cables.

Fig. 1 The voltage on the raised phone would, depending on the passing stream should be in the area indicated by the letters A to G

The most important part of the phone is a colloquial circuit. The call is transmitted over the line modulation current that flows through the line. The current is modulated on the side panel (VoIP Gateway), which transfers the call to the user, and in the device, which is transmitted from the user. The speech circuit is a hybrid circuit that suppresses the signal from the microphone in the earpiece. The hybrid circuit is on the opposite side (PBX, VoIP gateway). The hybrid circuit is usually some sort of bridge, and therefore it is necessary to impedance phone and VoIP gateway (or exchange) have been adapted. It is important especially for VoIP devices, where the influence of digitization and transmission of data over the Internet arises signal delay in the order of tens of milliseconds. Mismatch, especially on the VoIP gateway, there is a very annoying echo.

Fig. 2 Colloquial hybrid transformer circuit. If L1 and L2 have the same number of threads and balancing impedance ZM is equal to the line impedance ZL, the microphone signal in the handset suppressed


Another important part of the circuit for dialing. All modern devices support tone dialing. Ringing circuit to alert the user to an incoming call. Acoustic (bell) or optical signals indicates the presence of ringing voltage on the line. Hook switch is a switch that turns on the circuit colloquial answer the phone.

Specifications

Telephone impedance:	aprox. 600 Ohm.
Recomended line impedance:	real. 600 Ohm.
Operating (off-hook) current:	20 mA (10 to 40 mA.)
Operating voltage:	aprox. 7 V @ 20 mA.
Dialing:	DTMF
"In-use" indication:	3 to 15 V/ aprox. 1 mA
On-hook current:	aprox. 0,01 mA @ 50 V

Phone Circuit Schematic

Fig 3rd Telephone unit schematic

Connection phone in Figure 3 Colloquial circuit with transistors T1 to T3 is connected via a hook switch and bridge DB1 to the telephone line . Diode bridge ensures that electronic circuits are supplied with the correct polarity. If the hook switch is closed, current passes through the transistor T1 lines , which is used as microphone amplifier and transistors T2 and T3 , which amplifies the signal to the receiver. Headphone amplifier operates in class A. The amplitude of the output voltage at the collector of the transistor is about 1 V, which for the purpose of completely sufficient . Headphones or speakers can be used with an impedance of 8 ohms , the amplifier but works better (has lower distortion) with higher impedance load . Trimmer P2 can adjust the gain as needed.

The amplifier is continuously drop of about 1.3 V, the sum of the voltage UBE transistors T2 and T3 and is only slightly dependent on the flowing current. This voltage across the resistor R1 is powered electret microphone . The signal from the microphone passes through C1 to the base of transistor T1 . It amplifies the signal level required to excite the line. Originally, the microphone amplifier much more difficult . But he had unnecessarily high gain and output impedance inappropriate . This simple connection works better . Working point T1 is set resistors R2 to R4 . The microphone amplifier there is a voltage drop of about 3.5 V , the voltage drop can be under current amplification T1 changed 3 to 4 V. Resistor R5 introduced at this stage, a negative feedback regulating the amplification and decreasing distortion. Balancing circuit C6, R6 and P1 suppresses the signal from the microphone in headphone amplifier .

The signal from the microphone is on the collector of T1 opposite phase than the emitter , but the amplitude of the signal at the collector is much greater. Potentiometer P1 can set a condition where the signals from the collector and emitter of the capacitor C7 T1 readings and audio from the microphone in the handset is suppressed. Simplified diagram balancing the bridge is in Figure 4 The setting is very dependent on the impedance of the line. Because VoIP gateway creates a link with the active resistance of 600 ohm and short supply does not create a significant reactive component , the setting is simple and very effective. The signal coming from the gateway or PBX is the collector and emitter of T1 phase balancing circuit and is therefore not suppressed.

Fig. 4th Simplified wiring hybrid (balancing) circuit in the phone

In order to suppress its signal worked well on the VoIP gateway, you need the phone to be defined impedance close to the impedance of the gate, ie 600 ohm. The output impedance of the collector T1 for AC signals, large, almost current source. Impedance of the phone for voice signals are essentially a parallel combination of R6, R1 and about one order larger impedance collector T1. Rectifier bridge through which the signal passes, it will affect the impedance to a minimum.

 Fig 5 Dialer circuit arrangement

For DTMF I did not find any suitable integrated circuit , and generate DTMF signal discrete oscillators would be difficult and impractical . Finally, I modified the DTMF phone dialer . Dialer is a small box with buttons and speaker , generating tones when you press the button corresponding to the relevant figures. It is used for remote telephone answering and for the selective choice of the civil radio stations . The dialer (Fig. 5 ), the signal goes from the integrated circuit via the 22k resistor on the transistor, which drives a small speaker . Transistor speaker and I vymontoval a DTMF signal is connected to the transistor T4 on the phone. After pressing the button, the IO output voltage appears about 1 V with superimposed DTMF signal . Connect the telephone line is very simple, just enough transistor T4 and resistor R7. The change in resistance R7 can adjust the intensity of tone . Speaker of the phone dialer I used it as a handset . Dialer , according to the type of memory to 11 or 13 numbers , but unfortunately it lacks useful the " Redial" to repeat the last number called. I could not deal with power dialer from the phone line , so your phone is a small battery , which is likely to last for many years. The battery has an advantage in that it forgets the stored phone numbers if you disconnect it from the line.

Also, the ringing circuit I did not get special IO . That's why I like bell oscillator is used samovybuzujícím a piezoelectric transducer . The oscillator is fed stream that passes through the ringer capacitor C8 , bridges DB2 , LED2 to LED4 and resistor R14 . The oscillator is operated only in one half , the sound is more significant . In the other half cycle current through diode D1 . The bell must have a dead zone . That there is provided connecting the LED. Ringing voltage amplitude must have at least 10 V to Buzzer began publishing a sound. The phone I used a blue LED with high luminance. These intensely lit even at current several milliamps , which is ringing flow. LED also serves as a visual alarm bell , which could be useful in noisy environments .

The last telephone circuits are busy lamp . Phone I was seeking a second phone in parallel connected to the device at the other end of the apartment . When the phone is " suspended " , the hook switch is switched to the circuit with transistors T5 and T7 . If all telephones on the line hung on the line voltage of 50 to 60 V. The transistor T5 is opened, closed, and T7 LED1 off. The circuit is taken from the line is very little current through resistors R8 and R9 . Shrinks if the line voltage is below 15 V, T5 is closed , opens T7 and LED1 lights up. Transistor T6 T7 gate bias control by the loss of the R11 so that LED1 is energized about 1 mA , which is quite sufficient for display . In the voltage range of 3-15 V line lights LED1 virtually the same. BSS123 transistor has a maximum voltage UDS only 100 V. If the ringtone is this voltage is exceeded. In my phone's built higher voltage transistor has lasted several months . If you're worried about him , you can type BS108 with UDSmax 200 V, but it is not in SMD . The "in use" circuit not be planted, if you indicate you do not need , or can be used alone for another phone .

Mechanical Design

Width of the printed circuit board was designed dimensions dialer , then the length of a "reasonable " distance between the microphone and earpiece. Although the board is a lot of space , most of SMD components . They take up less space and is easier mounting plate is not so much tinkering . Figure motive circuit and layout of components , following table .

Before you assemble components, prepare the first dialer and attach it to desce.Z dialer remove the battery and remove the hinged cover. Dialer carefully "crack". It should go fairly easily if you start in the corner, to which is attached a chain. Odpájíme the speaker wires from the board dialer and speaker carefully shucks from the bottom of the box. The board dialer vypájíme more transistor in TO92. The board dialer solder short wires to negative (Pad1) and positive (PAD3) terminal electrolytic capacitor and terminal for transistor-based vypájeného (PAD2). Editing is perhaps evident from Figure 9 photos The lower part of the housing dialer yet only tentatively secured to the plate phone plastic rivets (Fig. 10). We remove the box and the board will be filled by phone components.

 Fig. 6th Editing dialer and connection terminals

Phone was originally in a transparent plastic box, which was inside the LED backlight. Its production, however, I not successful, so I made ​​a wooden box. To her I used plywood manufacture of soft wood, obtained from the fruit of hazel. That will free devoted almost everyone greengrocer. From one high hazels get material for a few boxes. Plywood is easily machined and well bonded dispersion adhesive. I eventually recut the box, namořil and přelakoval polyurethane varnish.

 Fig. 7th Mounting boxes dialer

With the change in boxes I had to adjust some components on the board. LEDs were originally all SMD. Finally, there were only SMD LED 2. But it is not visible from the outside, and therefore does not need much light. You can replace the zener diode (3-12 V) or short-circuit, but it increases the sensitivity of the ringing circuit. Other LED in case of 3 mm diameter. It turns out that it is better to use LED with high luminous than type 2 mA of current, because the small stream shines more. Also switch SW1 on the phone "lifting", I moved to the side boards. Deferred phone is on the table laid down the keyboard. LED on the back because they are easy to see and switch is when you pick up the phone available with one touch. Of the joints it can not be soldered to the board just because they do not get tipped soldering iron to solder pad. On the solder contacts because I rozklepl small rivets, which I soldered joints by.

I then links to the rivets inserted the switch and soldered it from the opposite side of the board. Between the switch and the plate I put a piece of insulating paper. The switch can also be placed at any other suitable location in the box and board interconnect wires. Switches P-B143 of the newer series ("silver") are not too good and We turn the lever sometimes lose contact. To fix it so that "packs" pertinax holding plate with pins a little more same hopper. The defect had all the pieces that I had at home. Dimensionally the same switch, but painted black were fine.

 Fig. 8th The top side of the printed circuit board

The power dialer instead of the original articles I used lithium batteries. Do you solder boards phone as housing purchased as the GM and housing that vypájíte of defective motherboards PC that has otherwise placed pins. Piezoelectric transducer is bolted small screws through the PCB to the bottom of the box dialer.
On the microphone I slid the piece of tubing so that the tubing fit snugly inside the box. Thus reducing the acoustic coupling between the earpiece and microphone inside the device.

 Fig. 9th The underside of the plate and box

Fig. 10th The back of the phone with LED switch and a hole for the bell

Animation

Phone use in conjunction with the gateway Linksys Sipura SP2100. In the firewall settings to make sure that in menu / admin / voice / advanced tab you have set up Regional impedance lines FXS Port Impedance: 600 Phone can revive a product as shown in Figure 14 (SW1 closed). You can test with a different phone when line current, measure the voltage on the line and estimate the impedance of the phone - AC voltage test point should be after the switch opens twice. The trimmer P2 dial to maximum resistance (max volume). To attach the microphone sound source (eg mp3 player headphones) and adjust the trimmer P1 so that the sound from the microphone not hear the telephone handset. Try tone. Ringing circuit you can try connecting the phone via a suspended resistor 1 kOhm to AC voltage 24-50 V.

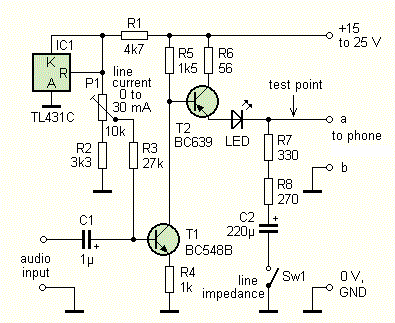

 Fig. 11th test preparation

Conclusion

The phone is in operation for several months and yet it was conceived as a second auxiliary telephone is often used. I have tested it successfully on the public switched telephone network (PSTN), but because I'm not sure whether it meets all required standards, there should not be connected. PSTN to VoIP gateway over a larger voltage when hanging up a more current when the phone is picked up.

List of components


R1	4,7 kOhm, SMD 1206
R2	1 kOhm, SMD 1206
R3, R4	22 kOhm, SMD 1206
R5	33 Ohm, SMD 1206
R6	2,2 kOhm, SMD 1206
R7	220 Ohm, SMD 1206
R8, R9	10 MOhm, SMD 1206
R10	330 kOhm, SMD 1206
R11	470 Ohm, SMD 1206
R12	220 kOhm, SMD 1206
R13, R14	10 kOhm, SMD 1206
P1	250 Ohm, trimr PT6V (Piher)
P2	5 kOhm, trimr PT6V (Piher)
C1	220 nF, SMD 1206
C2	10 mikroF/16 V, tantalum., SMD B
C3	1000 mikroF/6,3 V, electrolytic
C4, C5	100 mikroF/6,3 V, tantalum, SMD D
C6	47 mikroF/16 V, tantalum., SMD D
C7	4,7 mikroF/10 V, tantalum, SMD A
C8	220 nF/250 V, foil MKT RM5
	PCB board bcs59

D1	1N4148SMD, SOD80
DB1, DB2	S250,mini DIP bridge
ZD1	BZV55C15SMD, Zener. diode 15 V SOD80
T1, T3	BC817-40, SOT-23
T2	BC807-40, SOT-23
T4 až T6, T8	BC848C, SOT-23
T7	BSS123, SOT-23 (BS108, TO92)
LED1	high intensity 3 mm red LED (it's better than 2 mA LED)
LED2	any 3 mm SMD LED or Zener diode 3 to 12 V
LED3, LED4	high intensity 3 mm blue LED (it's better than 2 mA LED)
MIC1	elektret. mikrofon MCE100
SP1	tiny speaker or headphone 100 Ohm (8 to 100 Ohm), removed from dialer
B1	CR2032 battery and holder
SW1	P-B143, SPST switch
K1	slim RJ11 plug WEBP 6-4 LP
SP2	piezo KPT2038FW
dialer	dialer DTMF 13 or 11

Sourced By :  Jaroslay and Circuitsstream
