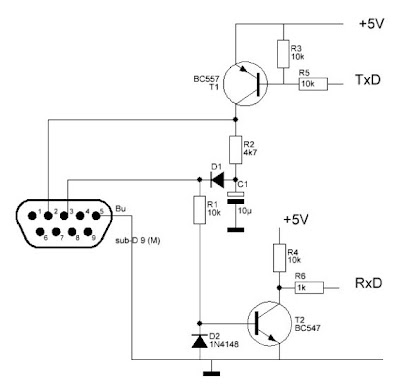

The circuit in this article is an RS232 converter, it is possible to connect an Arduino bootloader or your chip with a RS232 port. Here are two versions, one very simple and functional above and one below a little more sophisticated. The port 232 gives a bit more work than USB, but in case of equipment that only have this feature that is a good outlet.
