Filter FSK Circuit Diagram

FSK Frequency-Shift Keying is a form of frequency modulation in which the modulating signal changes the output frequency. between predetermined values​​. If problems arise in FSK demodulation signal is shown using this filter. The Frequency-Shift Keying filter is very simple and can be built into a phone plug.

Filter FSK Circuit Diagram
Filter FSK Circuit Diagram

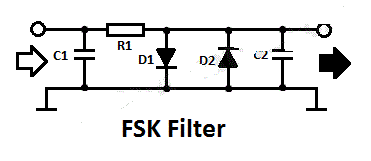

The diagram shows a low-pass filter made ​​of R1 and C2. This filter has a cutoff frequency. about 1.6 KHz. Once the "0" and "1" signals from FSK tones are sent as 1.2 kHz and 2.4 kHz respectively filter removes all the undesired signals.

Both D1 and D2 ensure that the FSK signal is limited to about + / - 600 mV amplitude. It can be connected to a speaker or headphone output.

components

C1 = 0.0082
C2 = 0.018
R1 = 5.6kΩ
D1 = D2 = 1N4148
